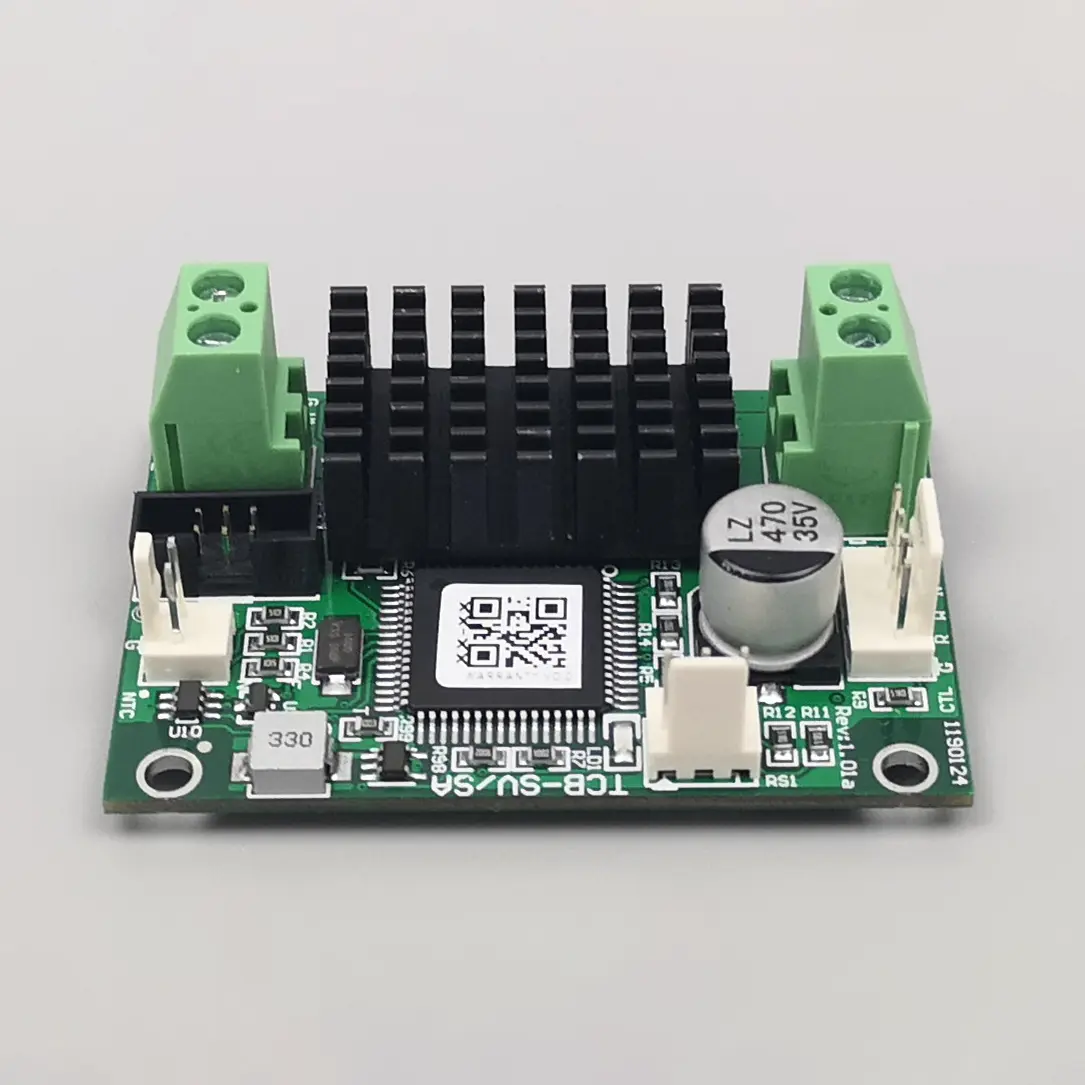

As a professional exporter with many years of experience in the precision temperature control field, X-Meritan has a presence in numerous countries and regions around the world. We have earned widespread market trust through superior product performance, consistent quality, and a strong global reputation. The TCB-SV Temperature Controller for Micro TECs, designed specifically for micro thermoelectric coolers, combines high precision, high stability, and fast response, making it an ideal choice for solving your precision temperature control challenges. We sincerely invite global partners and potential customers to send us inquiries and collaborate with X-Meritan to create a new future in precision temperature control.
Based in China, X-Meritan is dedicated to bringing cutting-edge temperature control technology to customers around the world. Our extensive export experience has given us a deep understanding of the needs and standards of diverse markets. Our proud TCB-SV Temperature Controller for Micro TECs is a core component tailored for cutting-edge applications such as optical communications, medical diagnostics, and sensors. We provide not only products but also professional technical support and reliable supply chain support. Feel free to send us an inquiry and let us be a key part of your project's success.
|
Model |
TCB-SV |
|
Board Supply Voltage (DC) |
7 - 24 V |
|
Board Supply Current |
Depends on TEC |
|
Output Efficiency |
> 90% |
|
TEC Voltage |
4.5 V (Default) |
|
TEC Current |
2.5 A (Max) |
|
Temperature Sensor |
10K NTC (Default B value: 3950) |
|
Temperature Control Accuracy |
±0.01°C |
|
Set Temperature Accuracy |
±0.01°C |
|
Temperature Control Range |
-30°C to 147°C |
|
Control Temperature Range¹ |
-20°C to 100°C |
|
Default Factory Set Temperature |
25°C, or user-specified |
|
Dimensions |
60 mm x 42 mm |
|
Height |
23 mm total (18.5 mm board + 1.5mm components, pins≤3 mm) |
|
Note |
For other specifications, please contact the manufacturer. |
First, it utilizes a high-cost TEC temperature control chip with a fully optimized PID control algorithm, ensuring an astonishing temperature control accuracy of up to 0.01°C. It eschews common on-off (PWM) control in favor of an industry-leading continuous current output mode, ensuring smooth and uninterrupted current flow to the TEC, completely eliminating temperature fluctuations caused by switching, providing the most stable and reliable temperature environment for your equipment.
Second, the TCB-SV has been extensively used in the laser industry, where temperature control requirements are extremely stringent. Its temperature control accuracy and long-term operational reliability are proven.
For design flexibility and ease of integration, we understand engineers' needs. The TCB-SV not only supports bidirectional control (heating/cooling) and is compatible with the most commonly used 10K NTC temperature sensors on the market, but also offers a wide range of interfaces and protocols. Whether using simple ASCII serial port commands or the industry-standard MODBUS-RTU protocol, you can easily set, monitor, and integrate temperature into your system. Finally, onboard alarm and ready signal outputs, as well as a TEC shutdown signal input, greatly facilitate the construction of a complete, safe, and intelligent equipment system.
Choosing the X-Meritan TCB-SV means choosing a temperature control core that combines cutting-edge control technology, proven reliability, and exceptional design flexibility. We have a professional and responsive team, offering excellent one-on-one service. If you need assistance, please contact us immediately.
