Welcome to become an X-Meritan supplier partner! We are honored to recommend and offer the high-quality TCB-SA Temperature Controller for Micro TECs. Made in China, this product is guaranteed to deliver quality. This product is not only a star product in the industrial automation control field, but also a testament to our commitment to technological innovation and customer satisfaction.
You can purchase TCB-SA Temperature Controller for Micro TECs from X-Meritan with confidence. As an authorized agent in China, we look forward to working with you. If you have any questions, please feel free to contact us.
We have extensive experience developing temperature control products, and our dedicated team provides a continuous stream of high-tech products. Our experienced application engineers provide comprehensive technical support, from solution design to mass production. Our team deeply understands customer needs and provides professional and efficient sales support to ensure rapid response and resolution of customer issues.

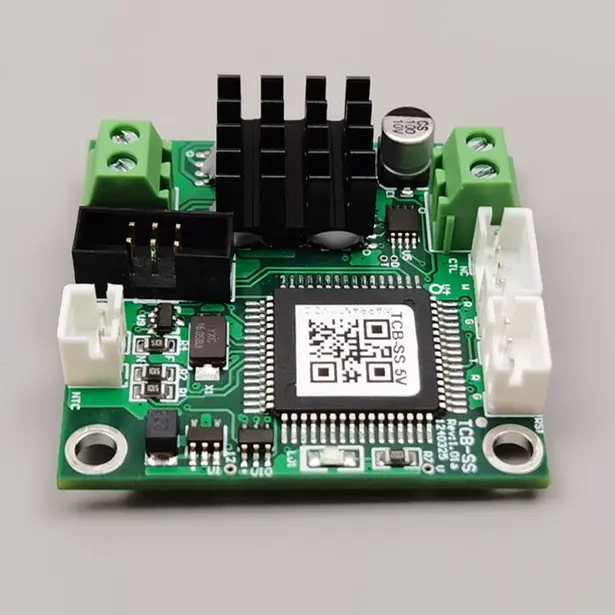

The TCB-SA Temperature Controller for Micro TECs is a high-precision temperature control board designed for small thermally conductive elements (TECs). Utilizing an integrated circuit (IC) specifically designed for high-end TEC temperature control systems, it features a comprehensive PID control algorithm, achieving temperature control accuracy as high as 0.01°C. The controller continuously supplies power to the TEC, eliminating the need for intermittent power outages, ensuring stable temperature throughout the entire control cycle and delivering optimal control. Its precise temperature control and reliable performance have been proven in long-term, large-scale applications in the laser field, where temperature control requirements are extremely stringent. The controller is also compatible with the most commonly used 10kΩ NTC temperature sensors on the market.
Board supply voltage (DC): 5V
Board supply current depends on the TEC
Output efficiency >90%
TEC voltage: 4.5V default
TEC current: 3.0A max
Temperature control sensor: 10K NTC (default B value: 3950). For other NTC temperature sensors, please contact the manufacturer.
Temperature control accuracy: 0.01°
Set temperature accuracy: 0.01°
Temperature control measurement range: -30°C to 147°C
Control temperature range: -20°C to 100°C
Default factory set temperature: 25°C, or user-specified
Dimensions: 60mm*42mm, height: 23mm (18.5mm on board, 1.5mm thick, pins below board no more than 3mm)
