We're proud to be a supplier partner of X-Meritan! As an elite company in this field, we have years of experience, professional personnel, continuous follow-up service, and high-quality products, such as the TCB-SS Temp Controller with Ultra-Compact Size and Designed for Micro TECs, from our factory in China. Our products are reasonably priced and well-received.

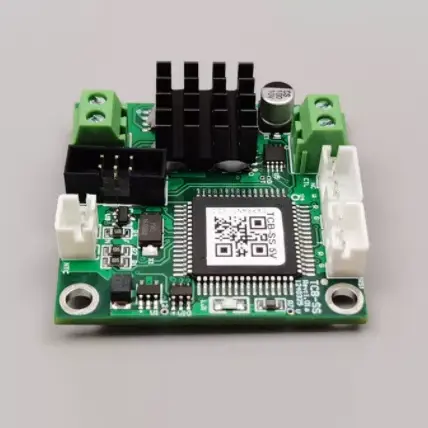

In China, X-Meritan offers a wide variety of products. Please send us an inquiry if you have any needs.The TCB-SS Temp Controller with Ultra-Compact Size and Designed for Micro TECs utilizes a high-cost, dedicated integrated circuit (IC) for TEC temperature control. It includes a complete PID control algorithm and offers temperature control accuracy up to 0.01°C. This board utilizes a continuous output drive, ensuring continuous and stable temperature control throughout the control cycle, providing optimal control. The TCB-SS supports the most commonly used 10kΩ NTC temperature sensors.
Its ultra-compact size, measuring 4cm*4cm*1.28cm, is one of the smallest in the industry for products with similar performance. Its driver efficiency exceeds 95%, effectively reducing system power consumption and self-heating for double the performance. Its extreme noise reduction and optimized driver and PID control algorithms reduce current ripple to prevent interference with sensitive components. Comprehensive protection features, including built-in overcurrent protection, overvoltage protection, temperature limiting, and TEC open/short circuit detection, further enhance its safety capabilities.Ensures the long-term operation needs of users.
|
Board supply voltage (DC) |
5V ±10% |
|
Output efficiency |
>94% |
|
TEC voltage |
4.5V (default) |
|
TEC current |
3A (maximum) |
|
Temperature control sensor |
10K NTC (default B value: 3950) |
|
Temperature control accuracy |
0.01° |
|
Set temperature accuracy |
0.01° |
|
Temperature control measurement range |
-60°C to +170°C |
|
Control temperature range |
-20°C to +100°C |
|
Default factory setting |
25°C |
