In fact, we have some understanding or heard of refrigeration methods in our daily lives. For instance, common air conditioners use compressors for cooling, while semiconductor cooling is relatively less encountered in our daily lives. However, in recent years, the application scenarios of thermoelectric cooling in consumer products have increased, and it has gradually come into the view of ordinary people's lives, such as mobile phone heat dissipation back covers and in-car refrigerators in new energy vehicles, etc.
As the two mainstream refrigeration methods, understanding their working principles first can deepen our comprehension of their differences.

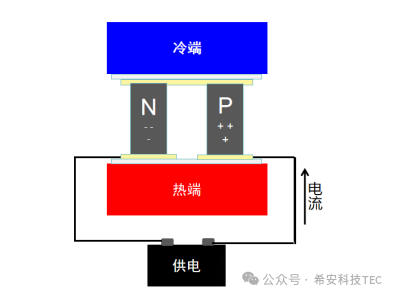

The principle of semiconductor cooling (Peltier effect) : when current passes through the contact surface between p-type and n-type semiconductor materials, the carriers migrate and absorb heat to achieve cooling (cold end), while heat is released on the other side (hot end)
The principle of compressor refrigeration (vapor compression cycle) : the refrigerant (such as Freon) is driven to circulate by the compressor, absorbing heat in the evaporator and releasing heat in the condenser, and heat is transferred through phase change.
Next, let's also specifically compare the differences between the two in various dimensions of refrigeration work:
Due to their respective advantages and disadvantages, they have different application scenarios

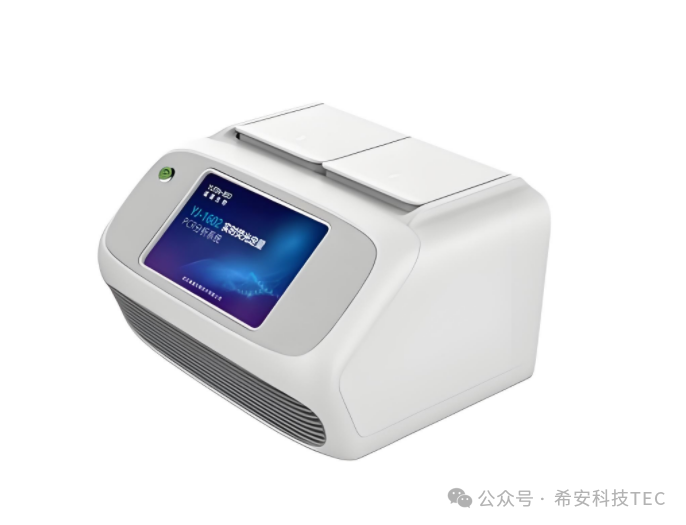

Medical equipment : PCR instruments, blood analyzers, etc. require an accuracy of ±0.1℃, and the semiconductor second-level response characteristics meet the strict requirements .
Laboratory instruments : optical equipment, lasers and other devices sensitive to temperature fluctuations .
Aerospace and deep-sea equipment : Its anti-vibration and vacuum resistance characteristics make it suitable for satellites and submersibles .
Confined space : no risk of refrigerant leakage, suitable for medical cabins and high-altitude equipment .

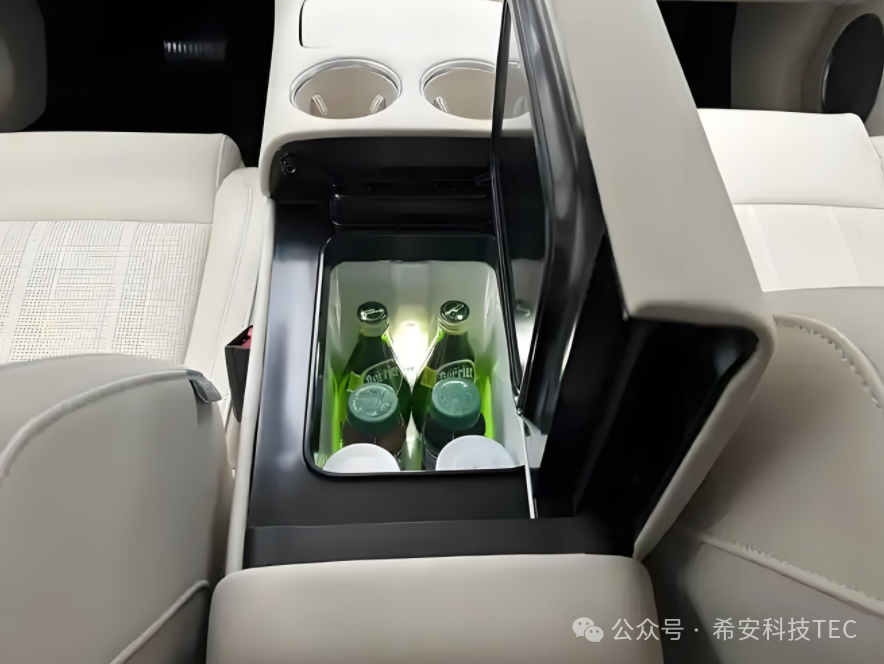

car mini refrigerator : for short trips, it can refrigerate beverages (with a temperature difference of 10-15℃), and has a significant advantage in noise reduction .
electronic heat dissipation : local cooling of CPU, small constant temperature boxes and other low-power scenarios .
Optical devices: Micro cooling chips, small in size, better integrated and installed in the TO tube shell, with good parallelism and flatness, ensuring the quality of the optical path.
The core application scenarios of compressor refrigeration

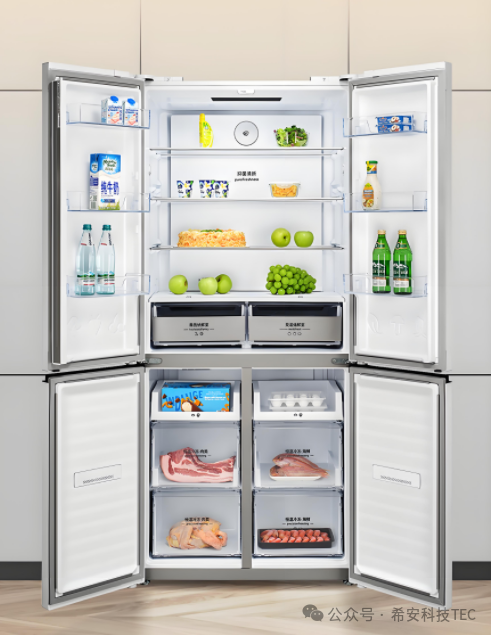

household/commercial refrigerator : It needs to maintain a low temperature below -18℃. The compressor can efficiently achieve large-capacity freezing.
cold storage system : Industrial-grade cold storages (such as logistics warehousing and food processing) rely on compressors to achieve stable low temperatures ranging from -35℃ to -18℃.
High-temperature environment cooling : The car refrigerator can still maintain a temperature below 0℃ in the hot summer, making it suitable for long-distance transportation.
For equipment such as air conditioners and central refrigeration systems that require continuous operation and have large temperature differences, the COP of compressors (2.0-4.0) is significantly better than that of semiconductors.
It can be seen from this that compressor refrigeration has an absolute advantage in high-power and low-temperature scenarios , while semiconductor refrigeration is widely applied in special fields due to its precise temperature control, quietness and adaptability . When making a choice, it is necessary to balance the temperature requirement, environmental conditions and cost. After reading the article, do you know how to choose a suitable refrigeration solution?
