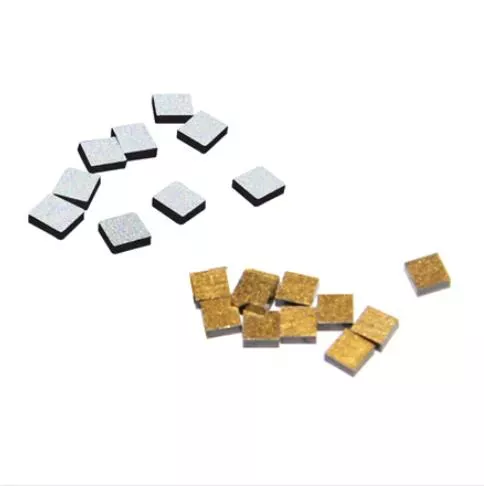

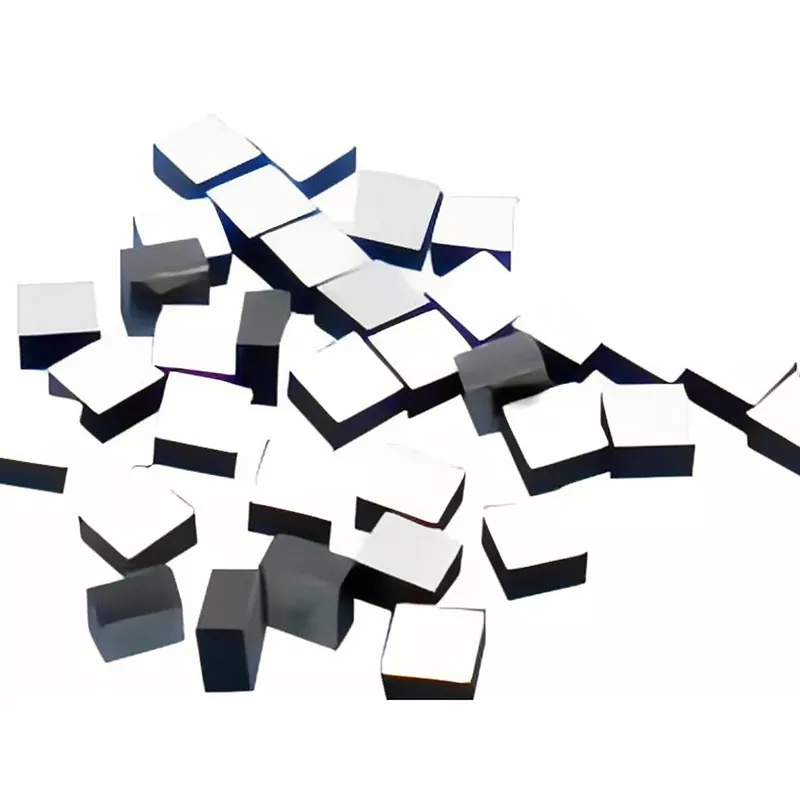

Join X-Meritan and become our partner! We're introducing our High Precision NTC Thermistor Chip, featuring gold or silver plating. It's ideal for hybrid multi-function modules or high-precision NTC temperature sensors. Can be used in bonding processes using gold/aluminum/silver wire. High accuracy: ±0.5%, ±1%, ±2%, ±3%. Excellent thermal cycling resistance. High stability and reliability. Compact size: 0.3 x 0.3mm. Dimensions and parameters are customizable.
High precision NTC thermistor chips, manufactured in China, are highly sensitive temperature measuring components. Their resistance decreases as temperature rises, making them widely used in applications requiring precise temperature measurement. X-Meritan provides professional technical support for NTC thermistor chips and components. Contact us by email, phone, or other means.
This temperature measuring instrument has extremely high accuracy and minimal error, making it particularly suitable for use in places requiring precise temperature control. Its compact size allows for easy installation in equipment with limited space. Even with long-term use, it is not easily affected by the external environment and maintains accurate temperature measurement performance. It typically uses a thin chip design with a protective layer on the surface to effectively prevent moisture intrusion and oxidation corrosion, thereby extending its service life. Customizable (gold | silver electrodes) Temperature range -253°C ~ 1000°C
X-Meritan is a Chinese company specializing in the application of advanced semiconductor cooling technology, providing professional material selection, core component supply, and comprehensive cooling solutions for optical communications, industrial and medical applications, and automotive radar. Our client base includes communications industry system integrators, domestic and international optical communication device and module manufacturers, optoelectronics universities, and key laboratories. Currently, we serve markets spanning fiber optic communications, sensing, medical, automotive radar, and consumer applications.
|
Model |
R (KΩ) |
B (K) |
Dimensions (LWT) (mm) |
Rated Power at 25°C (mW) |
Dissipation Coefficient (mW/°C) |
Thermal Time Constant (s) |
|
DT502□3950A |
5.0 |
3950 |
1.01.00.5 |
<60 |
~1.2 |
≤3 |
|
DT103□3435B |
10.0 |
3435 |
0.950.950.6 |
<60 |
~1.2 |
≤3 |
|
DT103□3470A |
10.0 |
3470 |
1.01.00.5 |
<60 |
~1.2 |
≤3 |
|
DT103□3950A |
10.0 |
3950 |
1.11.10.46 |
<60 |
~1.2 |
≤3 |
|
DT203□3743A |
20.0 |
3743 |
1.11.10.6 |
<60 |
~1.2 |
≤3 |
|
DT303□3950A |
30.0 |
3950 |
1.01.00.55 |
<60 |
~1.2 |
≤3 |
|
DT473□4050A |
47.0 |
4050 |
0.450.450.25 |
<10 |
~0.2 |
≤2 |
|
DT503□3950A |
50.0 |
3950 |
1.01.00.55 |
<60 |
~1.2 |
≤3 |
|
DT104□3950A |
100.0 |
3950 |
0.950.950.6 |
<60 |
~1.2 |
≤3 |
|
DT104□3964F |
100.0 |
3964 |
0.450.450.2 |
<10 |
~0.2 |
≤2 |
|
DT104□4100A |
100.0 |
4100 |
0.950.950.6 |
<60 |
~1.2 |
≤3 |
Resistance: 1kΩ to 1000kΩ
B value: 3200K to 4500K
Size: 0.3mm to 4.0mm
