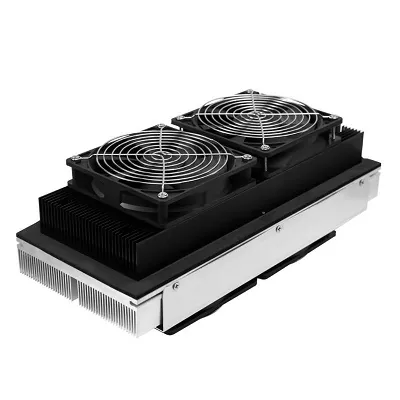

Direct to Liquid Thermoelectric Coolers Assemblies utilize the Peltier effect to precisely control the temperature of liquids. This eliminates the need for traditional compressors or refrigerants like Freon, achieving cooling and heating functions. Customers interested can contact our X-Meritan supplier. We offer better pricing and service, ensuring your satisfaction.
Direct to Liquid Thermoelectric Coolers Assemblies, manufactured and supplied by X-Meritan, a Chinese manufacturer, operate by applying a low-voltage DC power supply to a thermoelectric module, transferring heat from one side of the module to the other. Consequently, one side of the module is cooled while the other is simultaneously heated. Notably, this phenomenon can be reversed: changing the polarity (positive or negative) of the applied DC voltage causes heat to move in the opposite direction. Therefore, thermoelectric modules can be used for both heating and cooling, making them ideal for precise temperature control applications. They can also be used for power generation. In this mode, a temperature differential across the module generates an electric current. Practical thermoelectric modules typically consist of two or more elements of n-type and p-type doped semiconductor materials, connected electrically in series and thermally in parallel. These thermoelectric elements and their electrical connections are typically mounted between two ceramic substrates. The substrates mechanically hold the entire structure together and electrically insulate the individual elements from each other and from the external mounting surface. Most thermoelectric modules are approximately 2.5-50 mm (0.1 to 2.0 in) square and 2.5-5 mm (0.1 to 0.2 in) high. We offer a variety of shapes, substrate materials, metallization patterns, and mounting options.
The company has been deeply engaged in the field of thermoelectric refrigeration technology for many years and has a wealth of technical accumulation and industry experience. It strictly follows the ISO9001 quality management system for production and management to ensure stable and reliable product quality. It has established long-term cooperative relationships with high-quality component suppliers at home and abroad to ensure material supply and cost control.
|
Model |
Cooling Capacity (W) |
Temperature Range (°C) |
Flow Rate (L/min) |
Voltage (VDC) |
Port Size |
Dimensions (L×W×H mm) |
|
DTC-050 |
50 |
5 ~ 40 |
0.5 ~ 2 |
24 |
G1/4" |
150×100×80 |
|
DTC-200 |
200 |
0 ~ 50 |
1 ~ 5 |
24 / 48 |
G1/4" |
200×150×100 |
|
DTC-500 |
500 |
-5 ~ 60 |
2 ~ 8 |
48 |
G3/8" |
280×200×120 |
|
DTC-1000 |
1000 |
-10 ~ 80 |
5 ~ 10 |
48 / 72 |
G3/8" |
350×250×150 |
