As a professional thermoelectric coolers supplier, X-Meritan can not only provide high reliable Assemblies with Micro-thermoelectric Coolers from customers around the world, but also supply value-added service, we use our key advantage technology to mount thermoelectric coolers in any standard or specially designed packages, such as TO-8, TO-39, BTF,BOX and so on, Those are the most popular heads and packages use for thermoelectrically cooled laser diodes, detectors and sensors for optoelectronic applications.
X-Meritan offers you high-quality Assemblies with Micro-thermoelectric Coolers, focusing on the precise assembly operation of thermoelectric modules and seamlessly integrating them into high-integrity metal glass and metal ceramic packages. We have industry-standard configurations and can customize them according to the unique needs of our customers. With profound expertise in material compatibility and thermal management, we ensure that each component meets strict performance and reliability standards, catering to a wide range of industrial, aerospace, and electronic application scenarios. In addition to assembly, X-Meritan also offers collaborative joint development packaging, working closely with customers from concept design and material selection to prototyping and final production to ensure that the product solution fully complies with operational requirements and technical specifications.

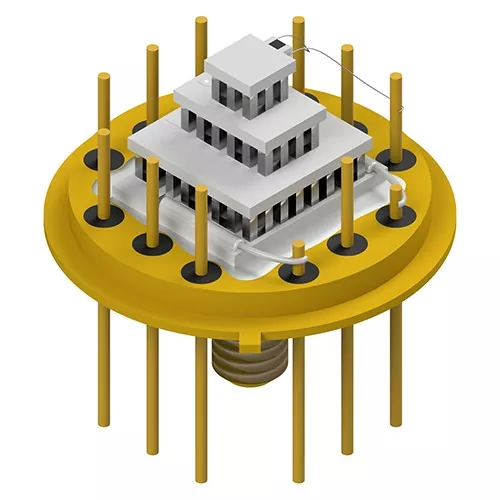

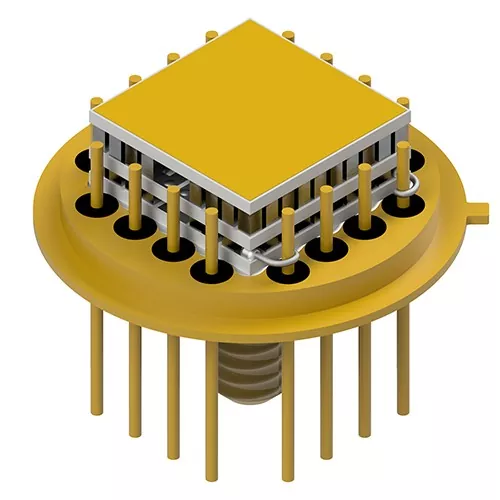

TO (Transistor Outline) is most common used packages in tele-com, IR, XRF and other types of detectors. The basic material of TO-13 type enclosures is usually Kovar or nickel- and gold-plated steel. X-Meritan manufactures thermoelectric assemblies for TO headers with differents pins. The header pins can be standard (cylindrical) or with flattened ends or nail shape to simplify wire bonding.
We can offer follower TO as table shows, our mounting service is very flexible, we have very reliable TO suppliers who can provides high-quality products, you can also provide TO for us to do the mounting.
|
Header |
Materials |
Pins |
Appllications |
TEC type |
|
TO-8 type |
Kovar |
6, 12 or 16 |
IR, XRF and other types of detectors |
|
|
TO-39 |
Kovar |
6, 8 or other |
IR, XRF and other types of detectors |
Single to two stages |
|
TO-46 |
Kovar |
5 or 6 pins |
VCSELs, miniature sensors |
Singel stages |
|
TO-66 |
Kovar |
6 or 9 pins |
IR, XRF and other types of detectors |
Single to Four stages |
|
TO-37 |
Kovar |
6 or 9 pins |
IR, XRF and other types of detectors |
Single to two stages |
|
TO-13 |
Kovar |
6, 12 or 16 |
IR, XRF and other types of detectors |
Single to two stages |

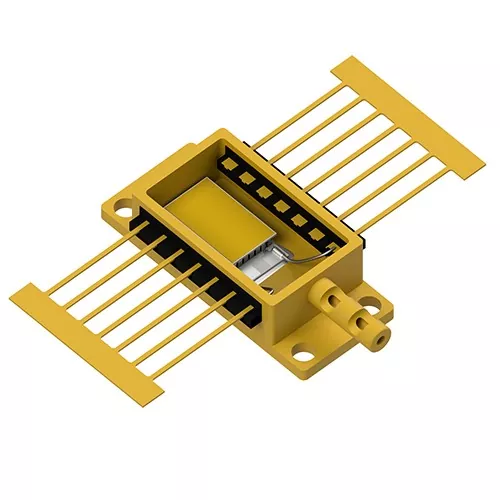

Besides TO headers, we can also supply other big packages such as HHL, BTF, PS-28, TOSA and HTCC& LTCC which are more complicated than TO. Customer have more options too.
The main applications of these packages are included laser module, high power laser module, detector and sensors, TOSA is more common use in telecommunications. HTCC and LTCC type metal-ceramic packages are used for photodetector arrays. X-Meritan has technologies for mounting thermoelectric modules in standard packages to reduce the dark noise of the sensor array.
|
Header |
Materials |
Pins |
Appllications |
|
HHL |
Kovar, steel, copper-molybdenum |
high power laser modules |
|
|
BTF |
Kovar with a copper-tungsten base |
14 pins |
laser modules |
|
PS-28, |
nickel and gold plated Kovar |
28 pins |
detectors and sensors |
|
TOSA |
Kovar with copper-tungsten |
|
telecommunications |
|
HTCC& LTCC |
metal-ceramic |
|
photodetector arrays. |
X-Meritan have more than 10 years experience in thermoelectric industry, we offer you high-quality Assemblies with Micro-thermoelectric Coolers, we can also help our customer to do the design according to customer’s requirement, any design can be done.
We always do our best to provide most high-reliable and best cost-performance products around the world.
